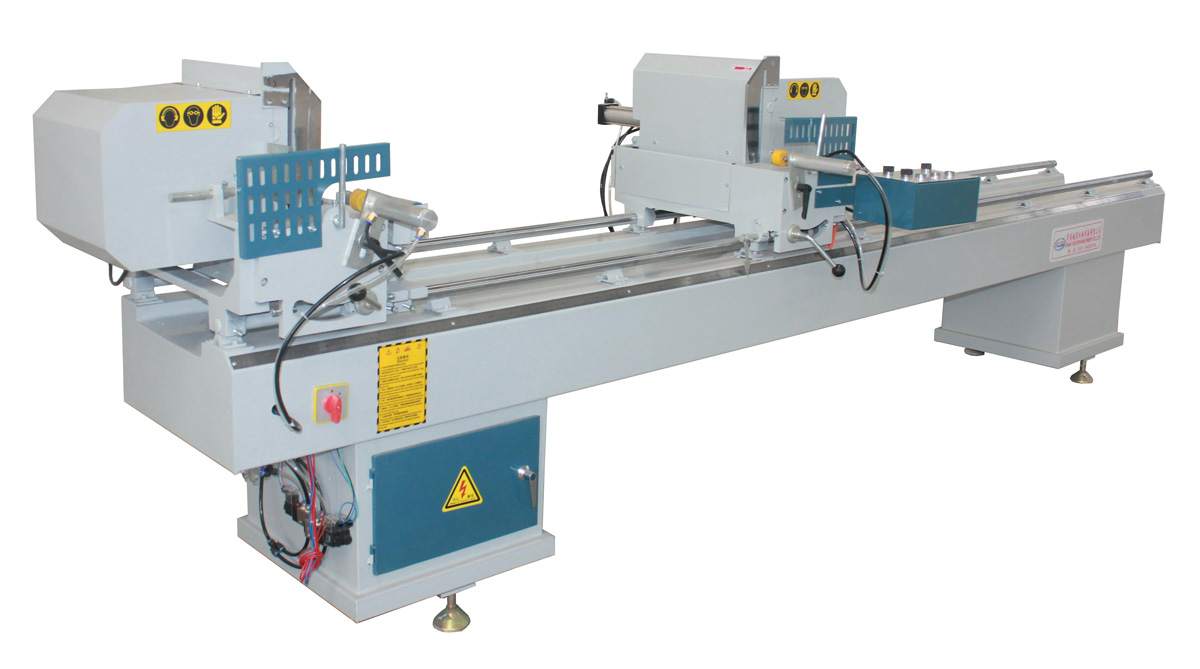

●The machine applies to 45°90°cutting for PVC profiles.
●It adopts pneumatic drive and linear guide feeding, so it has the characteristics of high accuracy.
●The machine Parts are made of solid materials, so it has features of high accuracy. Efficiency and wide cutting range.
Model LJZ2-400B
Input voltage 380V 50Hz
Input power 3.0kw
Air pressure 0.4~0.6MPa
Air consumption 120L/min
Motor rotating speed 2800r/min
Cutting length 360~3600mm
Cutting width ≤100mm
Cutting height ≤150mm
Overall dimension 4300×1130×1340mm
